Wylex

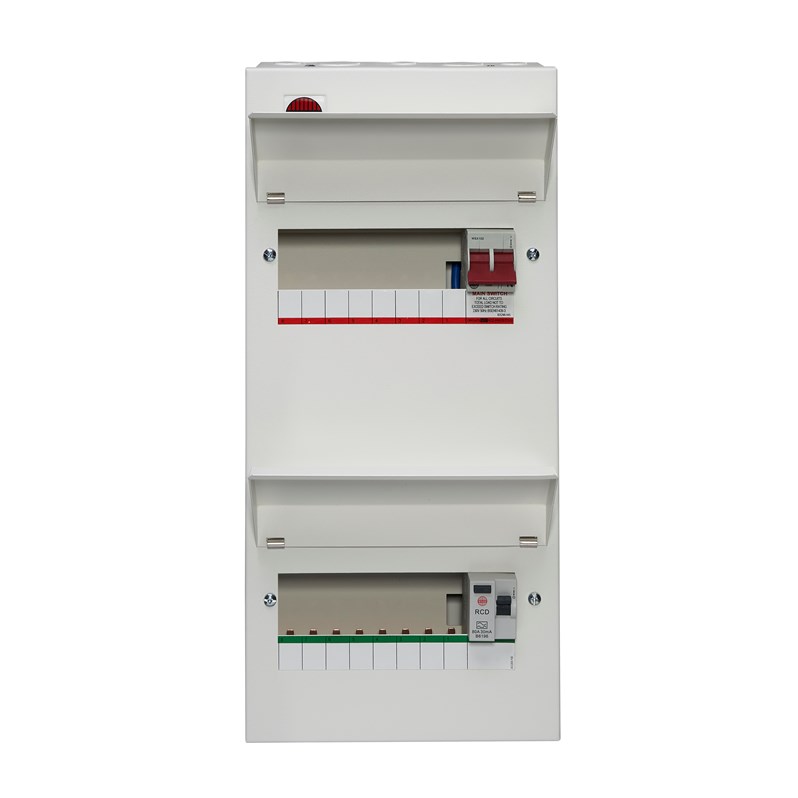

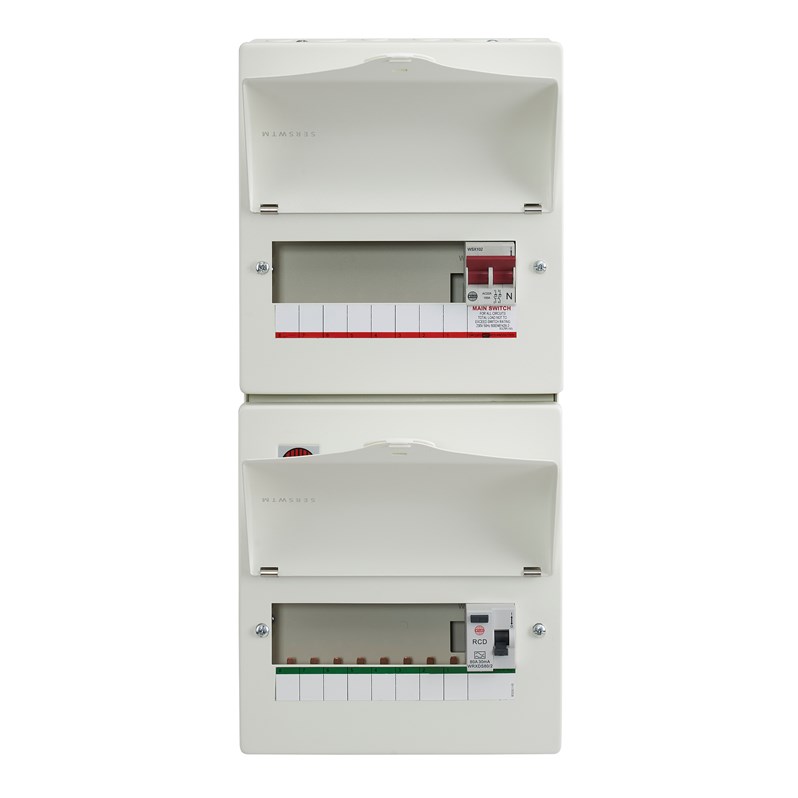

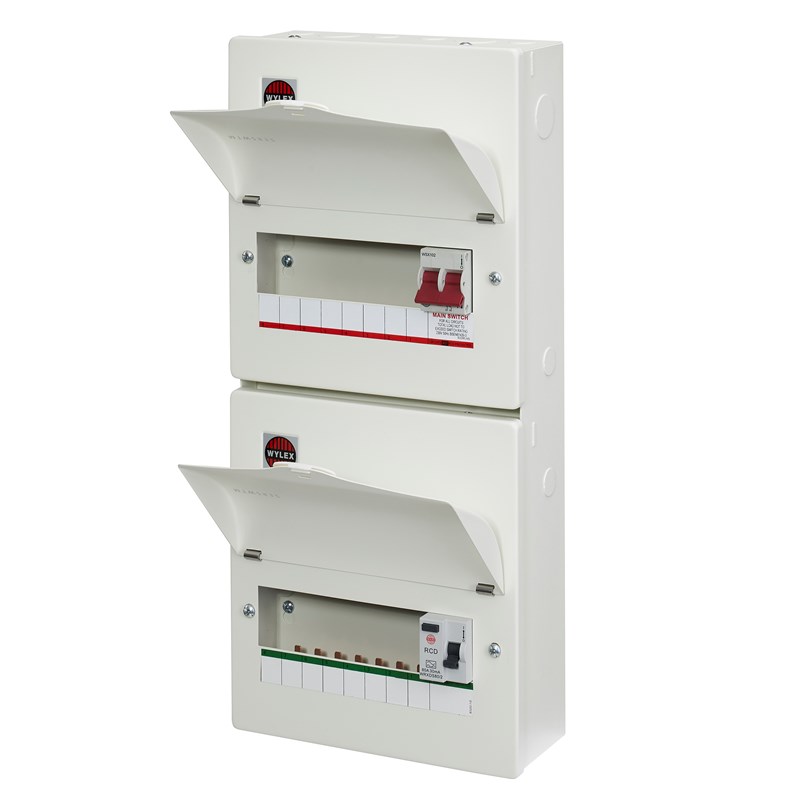

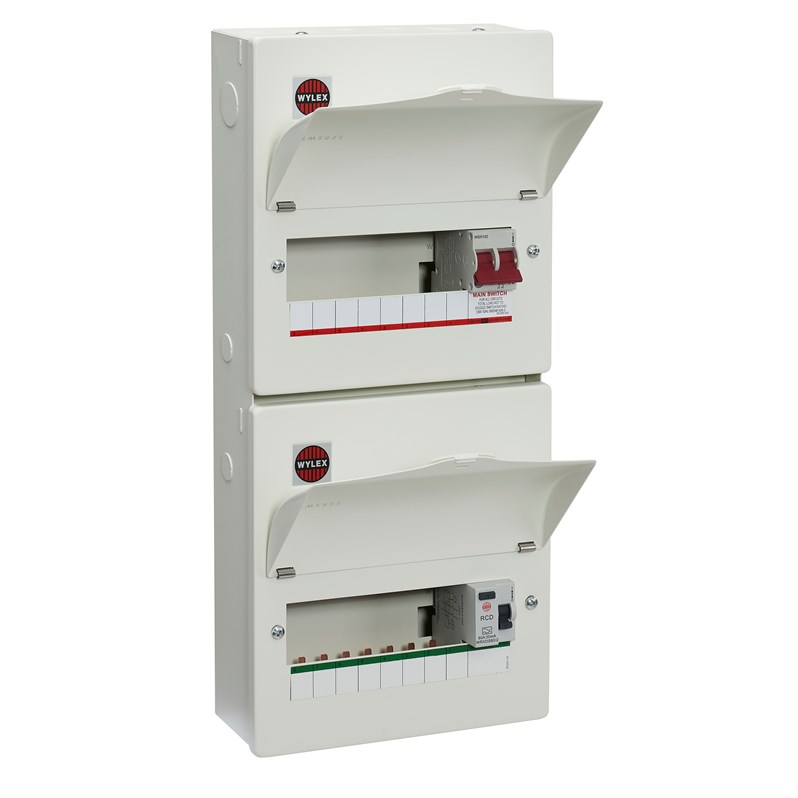

16 Way Split Load Duplex Consumer Unit 100A Main Switch +8, 80A 30mA RCD +8

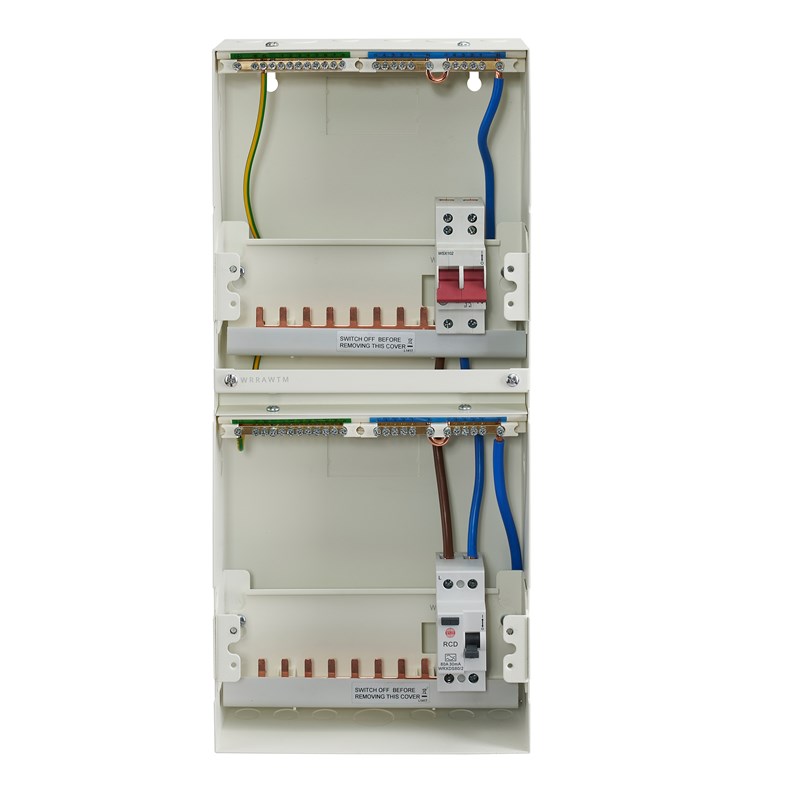

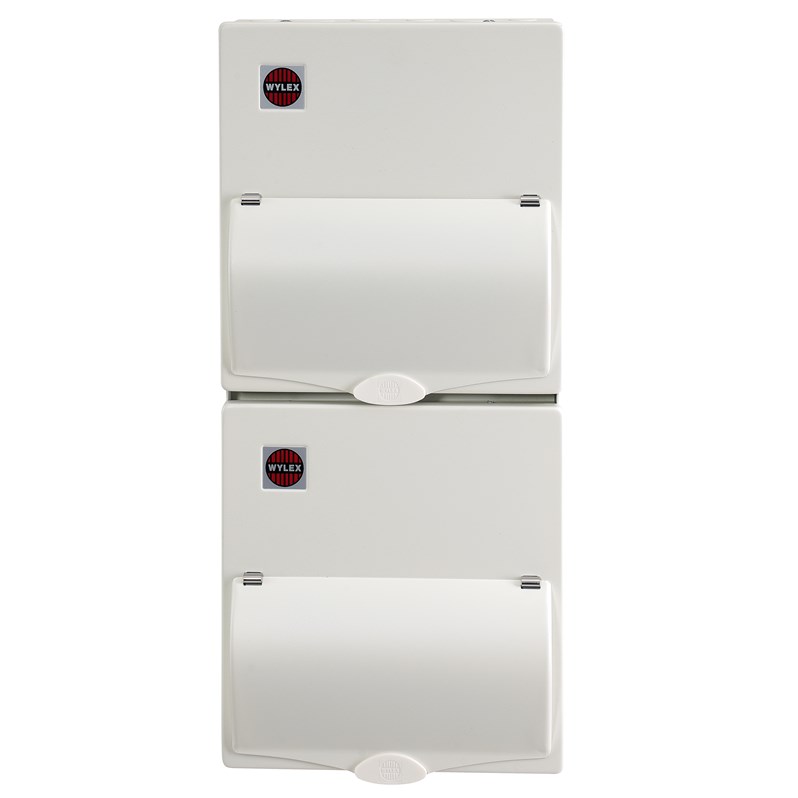

8+8W Split load duplex consumer unit. Includes a 100A fixed busbar assembly plus 100A main switch with twin line and neutral supply terminals & 1x 80A 30mA type A RCCB. Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs. Accepts the Wylex miniature type 2 SPD NMT2SPD3W/1. Constructed from a full metal enclosure with a two-part cover. This allows for independent temporary locking of the upper and/or lower visor(s) using the Wylex visor locking kit NMTLK2.
