34 Way Duplex High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs x3, Flexible Configuration
Wylex
34 Way Duplex High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs x3, Flexible Configuration

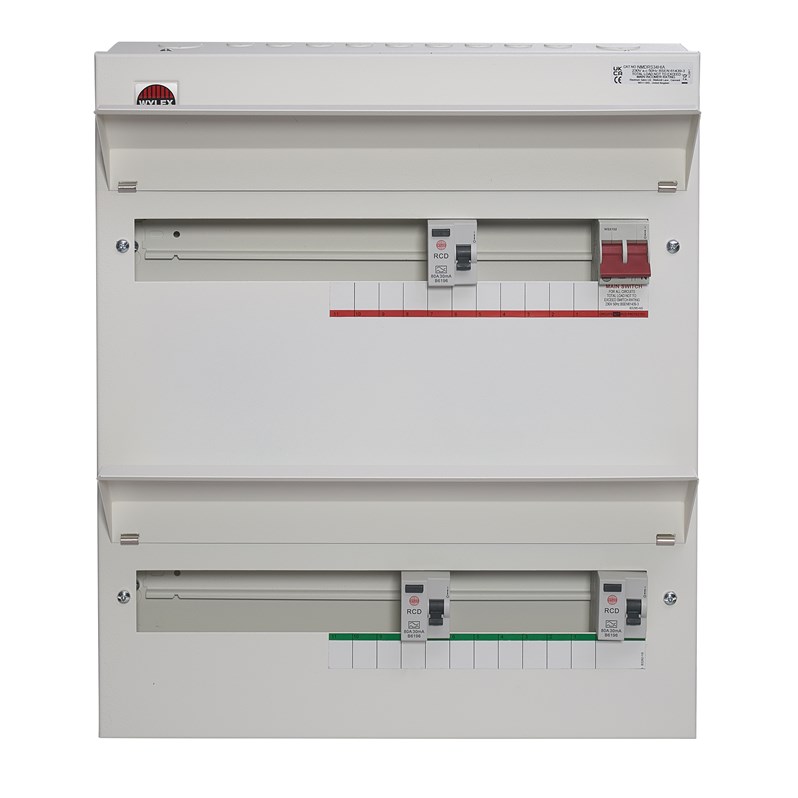

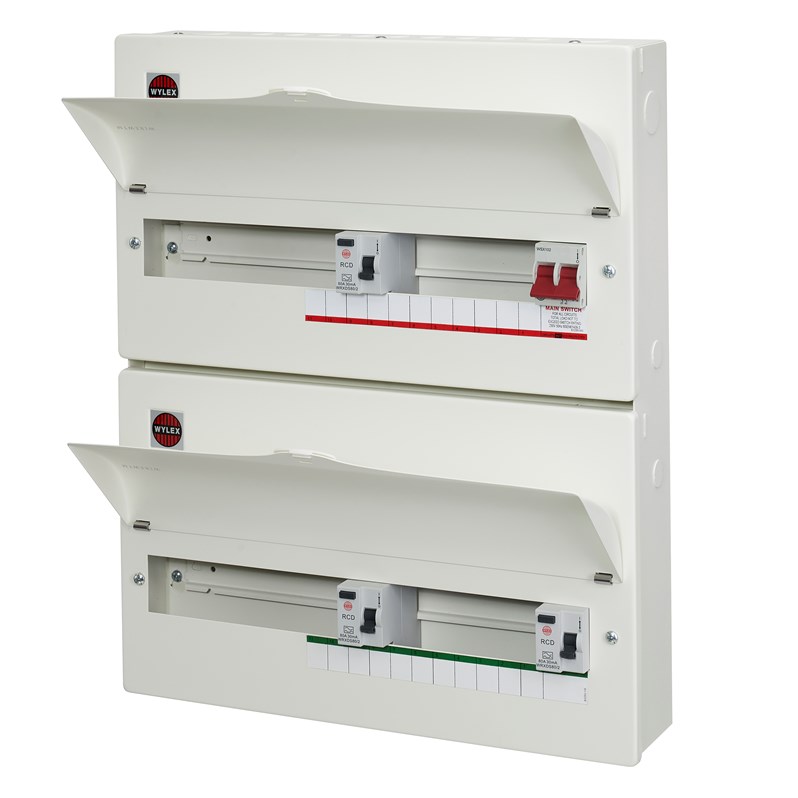

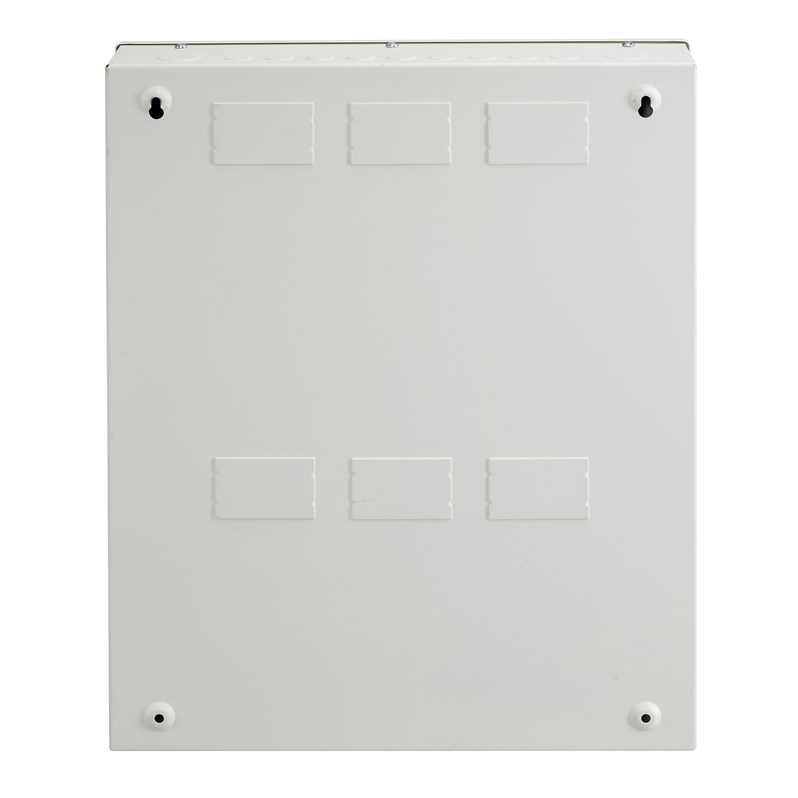

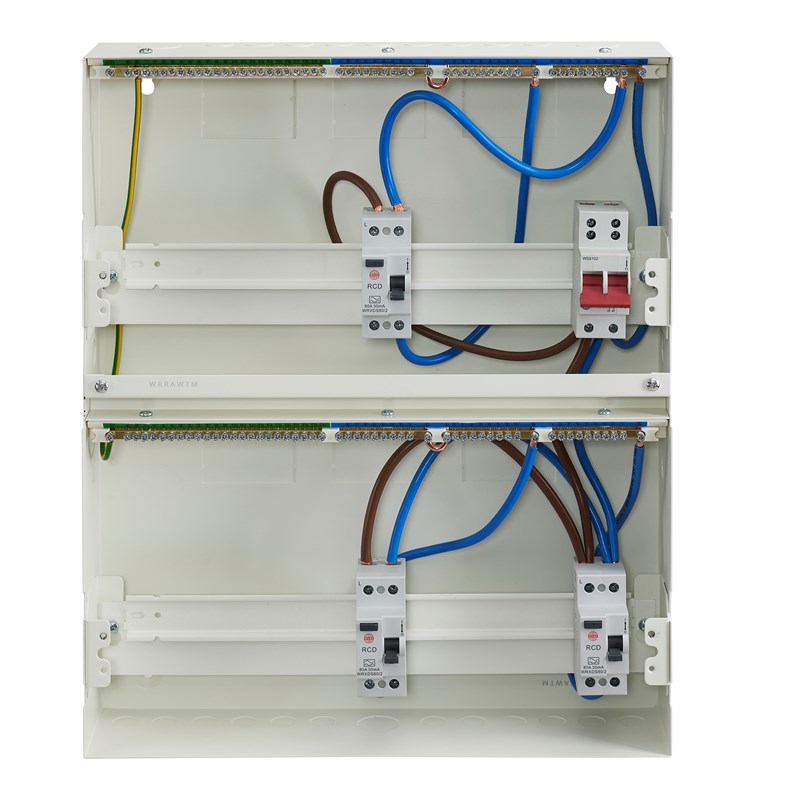

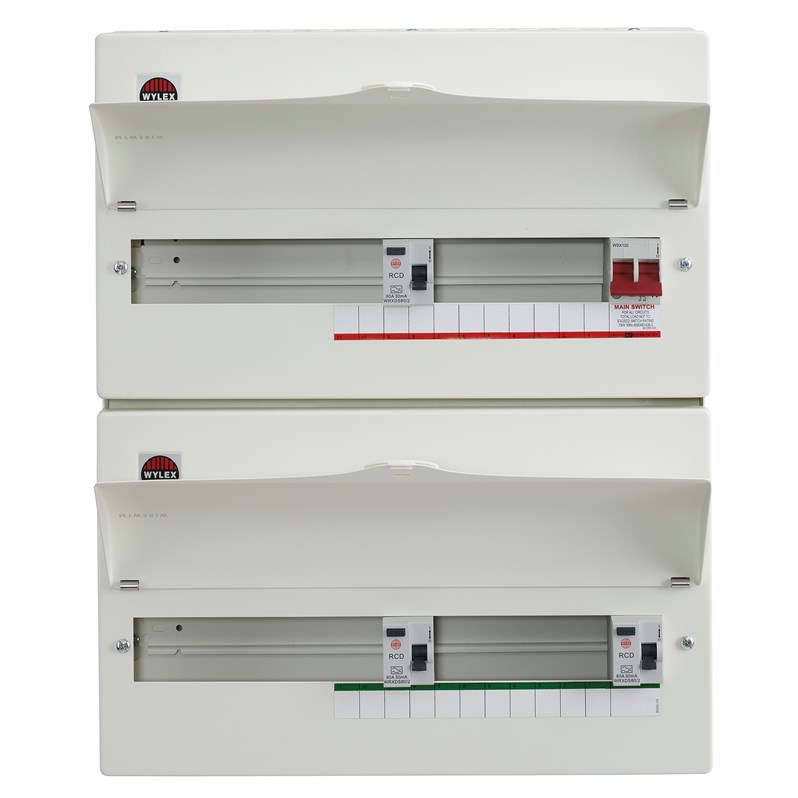

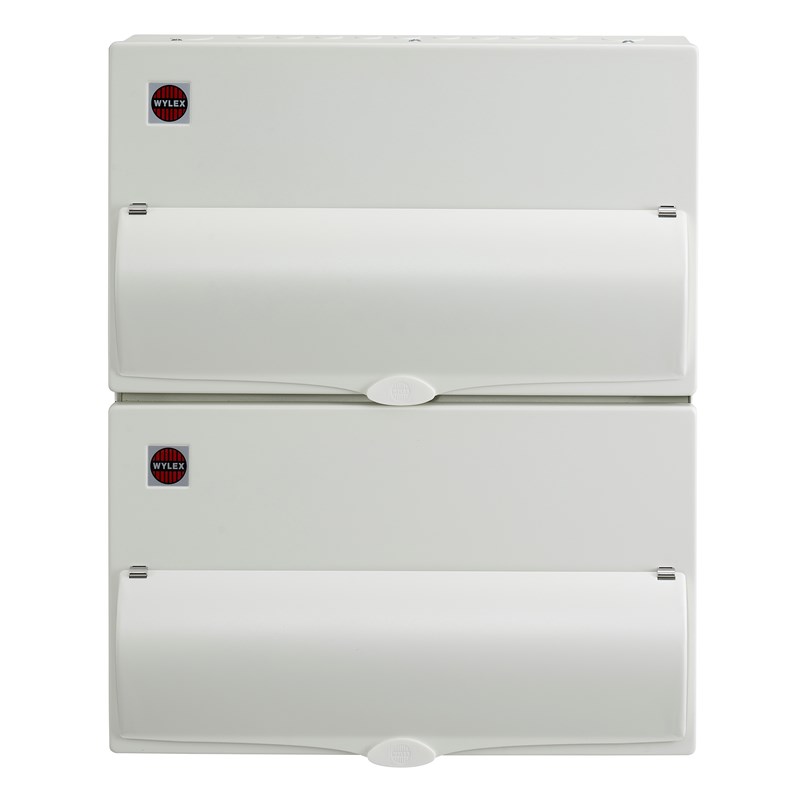

34W High integrity duplex consumer unit. Includes a 100A flexible busbar assembly, 100A main switch with twin line and neutral supply terminals and 3X 80A 30mA type A RCCBs. Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs. Accepts the Wylex miniature type 2 SPD NMT2SPD3W/1. Constructed from a full metal enclosure with a two-part cover. This allows for independent temporary locking of the upper and/or lower visor(s) using the Wylex visor locking kit NMTLK2.
