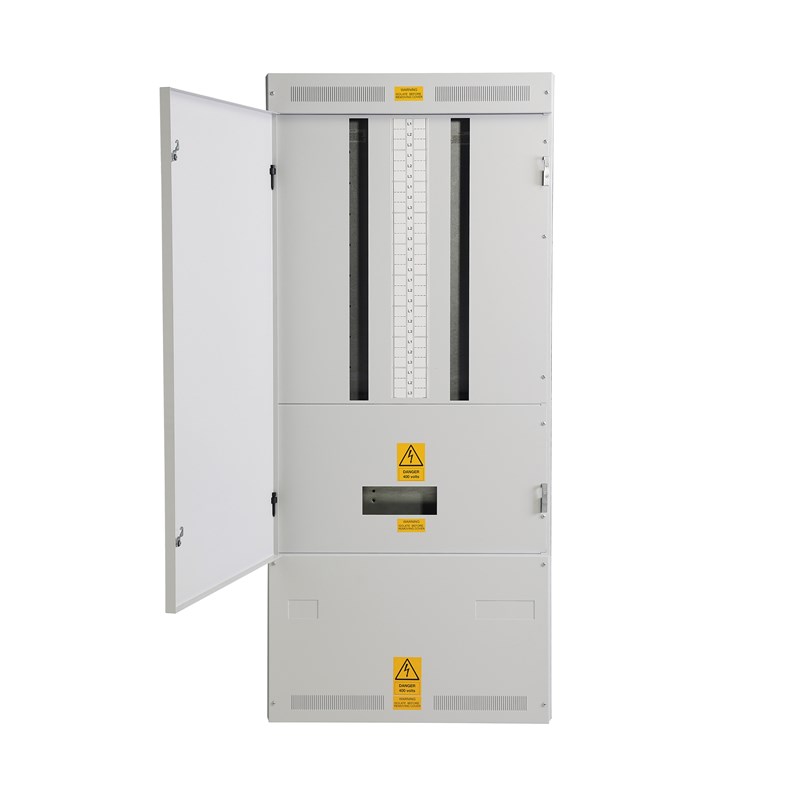

TP or 4P Switch Disconnector, MCCB or Direct Connection incomer options available. Accepts 3VA11 fixed or adjustable SP or TP MCCBs from 16A to 160A. Utilising a 8GP12921-0DA25 enclosure allows for the addtion of two 200A TP MCCBs. Accepts both integral incoming metering (Pulsed output/Modbus or MID) and integral Type 1, Type 2, or Type 1 and 2 surge protection. Form 3B Type 2 Form of Separation, IP3X with door closed, Icw = 35kA for 1s, Type tested and ASTA certified. RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3.

CAT

8GP1318-5DA54
