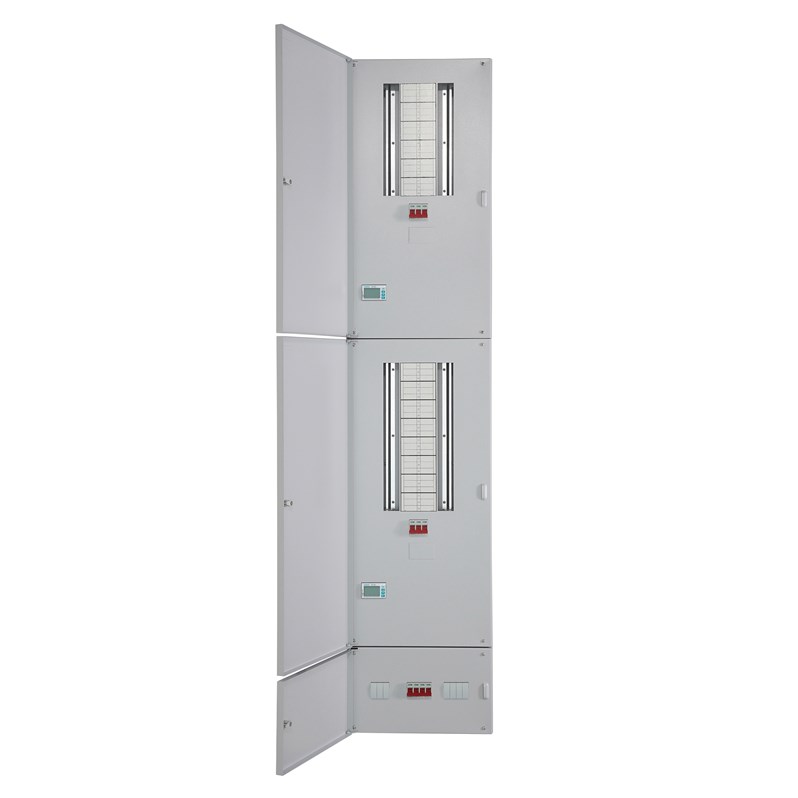

Alpha BSII Vertical Power & Lighting Distribution Board 16 + 12 Way MID

16W/12W 125A 3P+N Power & Lighting distribution board for commercial applications to aid compliance with Building Regulations Part L2. Complete with Switch disconnector and 2 MID certified meters for ease of use by the property manager and installation by the contractor. Accepts Siemens 5SL 10kA Single Pole and Triple Pole Type B, C, and D MCBs from 6A to 63A, 5SU 10kA Single Pole Type B and C RCBOs from 6A to 50A, and 5SV 6kA Single Pole AFDDs from 6A to 40A. Individual isolation for top and bottom boards which are both fully rated at 125A. RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3.

CAT
8GP1635-2DA44
